Basic Info.
Model NO.
HGQ120
Feature
Degradable
Application
School, Hospital
Condition
New
Certification
ISO9001
Draining Way
Dehumidification
Fuel Type
Electric
Operation Mode
Full-Automatic Control
Capacity
100-150kg
Operational Method
Intermittent
Structure
Air Flow Drier
Operation Pressure
Atmospheric Dryer
Movement Way
Combined
Heating Mode
Radioactive
Transport Package
Wooden Case
Specification
ISO9001
Origin
China
HS Code
84512900
Production Capacity
50sets /Month
Product Description

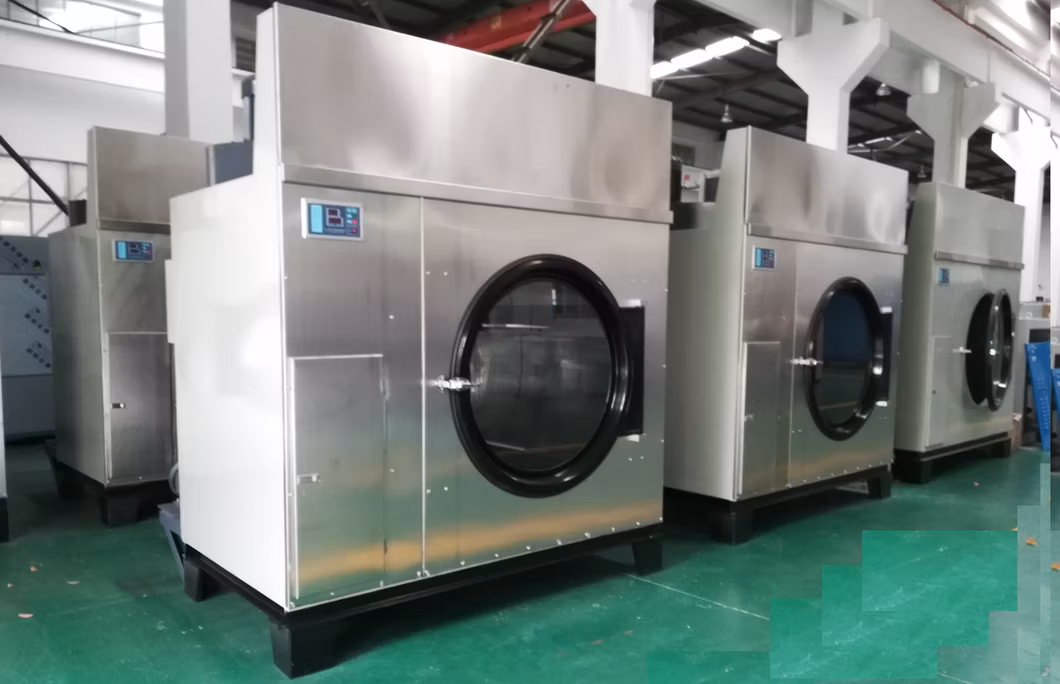

Professional 120kg Clothes Dryer Machine With Stainless steel radiator
1. Washer, dryer, ironer, folder
2. Clients all over the world 50 countries
3. Capacity 10-150kg
Product Name: Tumble dryer
This is perfect Dryer for Jeans that with its big drying drum ,there will be no mark lefted on Jeans
A Stainless steel ss304 drying drum
B Stainless steel ss304 heat radiator
C With big door to do loading and unloading
D With Durable structure
E With fast drying speed that 30 minutes for towel and 20 minutes for towels and Jeans
Main Features:
1.High quality stainless steel basket
2.Double belts drive system with high quality belts
3.Large heat exchanger for quick drying process
4.Special design fan impeller provides large air flow and less maintenance
5.Drawer type lint filter for easy cleaning
6.Programmable computer with maximum 5 programs
7.Safety switch to stop machine when door opens
8.Oversize loading door with large sign glass
9.Standard powder coated steel panels
10.Reversible basket
11.Most parts such as the drum, the door, the spray valve are made of sus304 stainless steel .
12.Optional cool air bypass system.
13.Optional Stainless steel front and side panels.
Purpose:
Drying washed & extracted fabric such as cotton, wool, hemp, silk, chemical fiber, etc; It is suitable for hotels, hospitals, organizations, laundries etc.
Terms of payment: T/T
Our products are ISO9001 and CE certified.
| Model | HGQ120 (Fast Type ) |
| Rated Capacity (kgs) | 120 |
| Drum Size (mm) | Φ1470*1160 |
| Rotation (r/min) | 28 |
| Heating | Steam Heated |
| Motor Power(kw) | 3 |
| Fan Power(kw) | 2.2kw*2 |
| Overall Dimension (mm) | 1640mm*1780mm* 2280 |
| Weight (kgs) | 1100 |
| model | HGQ15 | HGQ30 | HGQ50 | HGQ100 | HGQ120 | HGQ150 | HGQ200 |
| rated capacity | 15kg | 30kg | 50kg | 100kg | 120kg | 150kg | 200kg |
| drum dimension (mm) | Φ 760*560 | Φ 900*750 | Φ 1050*930 | Φ 1320*1055 | Φ 1470*1055 | Φ 1600*1150 | Φ 1300*2150 |
| drum speed | 33r/min | 33r/min | 33r/min | 33r/min | 33r/min | 28r/min | 33r/min |
| electric heating power | 12.6kw | 16.2kw | 27kw | ---- | ----- | ------ | ----- |
| motor power | 0.75kw | 1.1kw | 1.5kw | 2.2kw | 3kw | 4kw | 3kw |
| fan power | 0.75kw | 1.1kw | 1.1kw | 1.5kw | 1.5kw*2 | 1.5kw*2 | 2.2kw |
| overall dimension (mm) | 800*1020*1530 | 1000*1400*1800 | 1190*1670*2100 | 1480*1840*2380 | 1660*1840*2470 | 1760*2000*2730 | 2650*1630*2720 |
| overall weight | 250kg | 600kg | 800kg | 980kg | 1100kg | 1300kg | 1300kg |
1.We are the factory of laundry equipment,we own a professional team which is skillful on laundry washing machines.
2.Our main products are Washer Extractor(15KG to 150KG),Tumble Dryer(15KG to 120KG),Ironing Machine,Folder and Drying Cleaning Machine,Ironing table which are used in industry washing shop,laundry shop for commercial,school etc.
3.All the sales are online 24 hours,because it is easy to help every customer answer the question
4.We have agent in the world,if you want to be the next one,do not hesitate and looking forward to your inquiry.
5 On Line Video Instructure to help with installation of the machine will be offred
Please feel free to contact us about the service and price
Contact Person :Ms Sun
Service System
Pre-Sale Service
Before the order is confirmed, we will provide free laundry layout and all the consultation about the product.
Sale Service
1). In-depth Design
When the order is confirmed, we will communicate with the professional staff from the buyer's part and discuss the in-depth drawing design. Besides, we will provide the whole laundry factory layout design for free. The design scheme will be including equipment installation drawing about foundation, water inlet, drainage, air input and output, compressed air and electricity.
2). Installation
All the machines are well tested before we delivery the machines to the operator
When the equipment arrive to the buyer, we will send our technical staffs to provide field installation guidance and any other necessary help to ensure proper and standard installation.
3). Testing
After installation, our staff will help our customer to test the machine and check all the technical index, function, specification of the machine. Also we will comprehensively eliminate all the possible human-caused damage or troubles during installation to make sure the machine will operate in its best condition.
4). Operation Training
Before the machine is put into use, we will provide operation training to ensure the operators from the buyer's part can work independently. The training includes proper operation, safe startup, smooth operation, proper washing, linen check and categorization and machine maintenance. Also we will help operators to learn the right way to save water, energy and emergent stop operation.
After-Sale Service
1)
Full set of Installation and Operation Manual will be sent together with the machines ,and we are also able to offer online instructure
Operation Video will also be sent together with the machines
2) If you need we are able to send engineer to the work site to help you to train the operator and also to instruct the installation
