Basic Info.
Model NO.
Cooling tower
Cooling Method
Counter Flow
Ventilation Mode
Mechanical Ventilation
Material
Metal
Air Contact Form
Wet
Air Contact Way
Closed
Tower Shape
Square
Noise Level
Low
Application Fields
Industrial
Certification
ISO, CE, CCC
Condition
New
Casing
Ss/Ulta-Galvanized
Coil
Ss/Red Copper
Drift Eliminator
CPVC/PP
Infill
No Infill Design
Driven System
Weg Motors
Fan
Axial Flow Type, Maintenance Free
Spraying Pump
Low Head Lift, Large Flow Rate
Transport Package
Container
Specification
30ton
Trademark
CASEN
Origin
China
HS Code
84198990
Production Capacity
200sets/Month
Product Description
Fin Tube Hybrid Cooling Tower with Air Cooled Part
General Description
Closed cooling tower is a heat exchanger between air and water/process fluid, and it can reduce the circulating water/process fluid temperature in heat exchange coil.
Closed cooling tower can be widely used to different fields of industry and HVAC.
Different applications need different types closed cooling tower, such as crossflow type and counterflow type.
We will help to choose the right type for your project.
Features
In the closed cooling tower, the circulating water/process fluid is cold in the heat exchange coil, so it can keep clean and contaminate free.
You can find our advantages as below,
TECHNICAL SPECIFICATIONS
The dimension of our closed cooling towers are designed according to container for sea shipment.
Specification of counter flow closed cooling tower as below:
| Model | Rated Capacity | Fan | Spraying Pump | Operation Weight | ||||
| Qty. | Power | Air Volume | Qty. | Power | Flow Rate | |||
| RT | KW | m³/h | KW | m³/h | KG | |||
| KCN-15 | 15 | 1 | 1*1.1 | 1*15000 | 1 | 1*1.1 | 1*36 | 1280 |
| KCN-25 | 25 | 1 | 1*1.1 | 1*15000 | 1 | 1*1.1 | 1*36 | 1550 |
| KCN-35 | 35 | 1 | 1*1.1 | 1*15000 | 1 | 1*1.1 | 1*36 | 2100 |
| KCN-45 | 45 | 2 | 2*1.1 | 2*15000 | 1 | 1*1.1 | 1*53 | 2300 |
| KCN-55 | 55 | 2 | 2*1.5 | 2*18500 | 1 | 1*1.1 | 1*53 | 2550 |
| KCN-65 | 65 | 2 | 2*1.5 | 2*18500 | 1 | 1*1.1 | 1*53 | 2600 |
| KCN-80 | 80 | 2 | 2*2.2 | 2*26000 | 1 | 1*1.1 | 1*53 | 3400 |
| KCN-90 | 90 | 1 | 1*5.5 | 1*60000 | 1 | 1*1.5 | 1*70 | 3800 |
| KCN-105 | 105 | 1 | 1*5.5 | 1*60000 | 1 | 1*1.5 | 1*70 | 4200 |
| KCN-125 | 125 | 1 | 1*5.5 | 1*80000 | 1 | 1*1.5 | 1*70 | 5380 |
| KCN-135 | 135 | 1 | 1*7.5 | 1*90000 | 1 | 1*1.5 | 1*70 | 5800 |
| KCN-160 | 160 | 1 | 1*11 | 1*125000 | 1 | 1*2.2 | 1*100 | 7400 |
| KCN-180 | 180 | 1 | 1*11 | 1*125000 | 1 | 1*2.2 | 1*100 | 8200 |
| KCN-200 | 200 | 2 | 2*4 | 2*55000 | 1 | 1*3 | 1*140 | 8700 |
| KCN-220 | 220 | 2 | 2*5.5 | 2*60000 | 1 | 1*3 | 1*140 | 8900 |
| KCN-240 | 240 | 2 | 2*7.5 | 2*90000 | 1 | 1*4 | 1*180 | 9200 |
| KCN-255 | 258 | 2 | 2*5.5 | 2*80000 | 1 | 1*4 | 1*180 | 9400 |
| KCN-275 | 275 | 2 | 2*7.5 | 2*90000 | 1 | 1*4 | 1*180 | 10500 |
| KCN-290 | 290 | 2 | 2*11 | 2*125000 | 1 | 1*4 | 1*180 | 11900 |
| KCN-315 | 315 | 2 | 2*11 | 2*125000 | 1 | 1*4 | 1*180 | 13350 |
| KCN-330 | 330 | 2 | 2*7.5 | 2*90000 | 2 | 1*5.5 | 1*233 | 15000 |
| Note: the 'Rated Capacity' based on standard condition: water inlet and outlet temp. 37-32degC, wet bulb temp. 28degC. | ||||||||
FAQ
1, Delivery Time
15-40days (depending on stock)
2, Shipping Type
20"GP or 40"HQ container
3, Required Parameters
Use Purpose, Inlet Process Fluid Material, Inlet Fluid Temperature & Flow Rate,
Outlet Fluid Temperature, Ambient Wet Bulb Temperature and Local Power Details

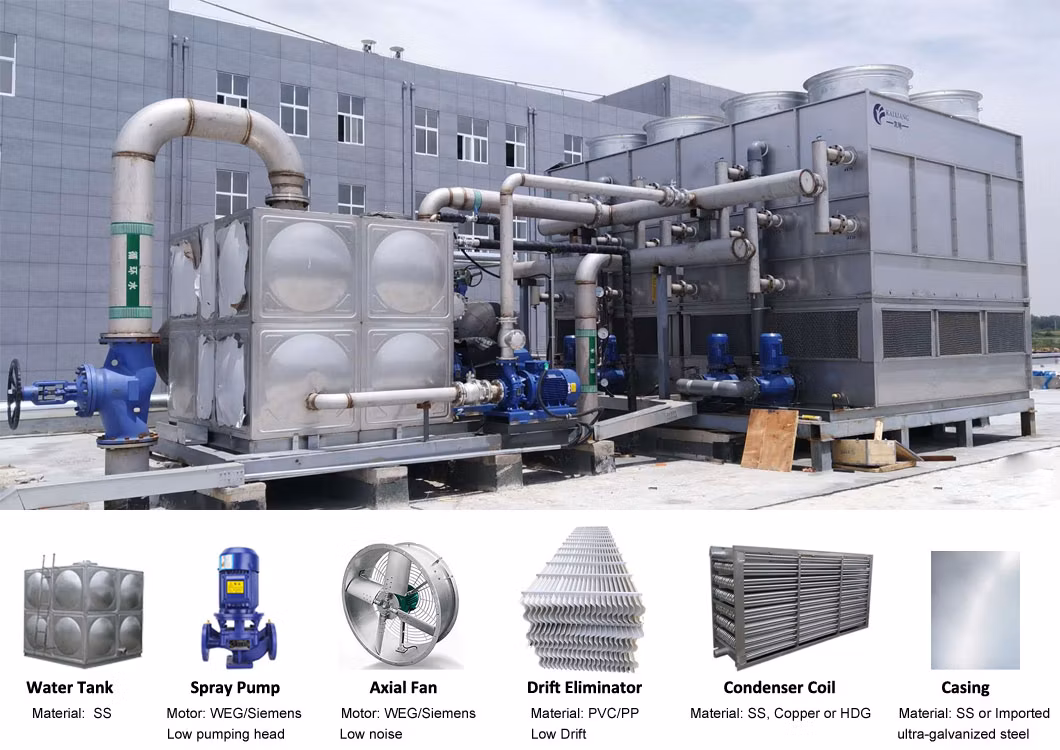

PROJECT CASES

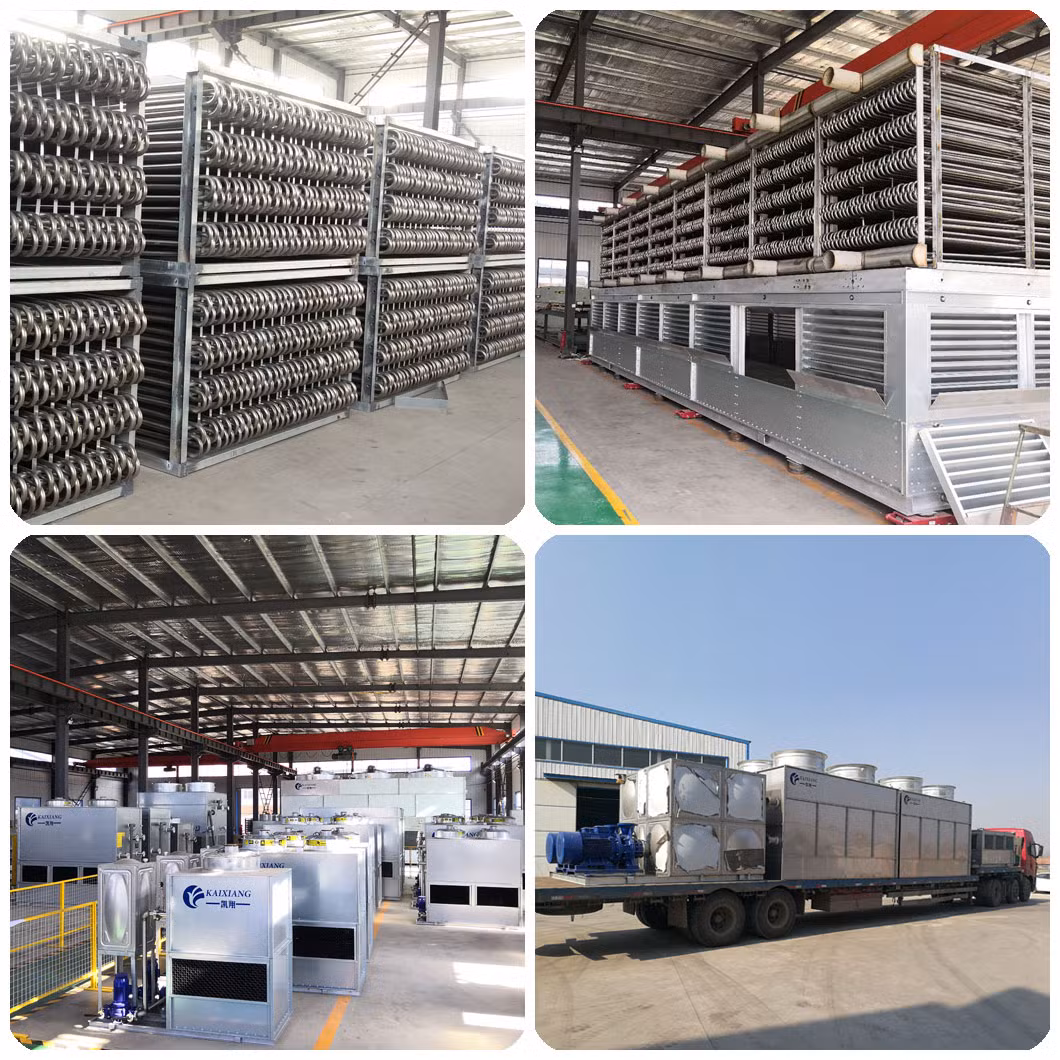

WORKSHOP
EXHIBITIONS
ABOUT US
Since established in 2008, Casen Heat Transfer Co.,Ltd is a professional manufacturer and OEM & ODM supplier of cooling tower.
By now, our company had passed ISO9001, ISO14001 and OHSAS18001.
And we also got 21 patents and certificates of CE, PED & SGS.
Our products had been exported to more than 30 countries and enjoy a good reputation.
We look forward the next reliable cooperator from here.
